1280x1024 12μM Megapixels Cooled FPA Detector High Sensitivity
Product Description

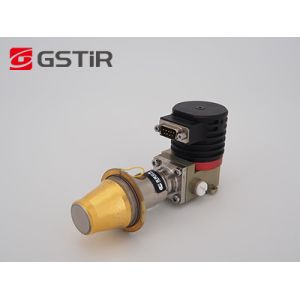

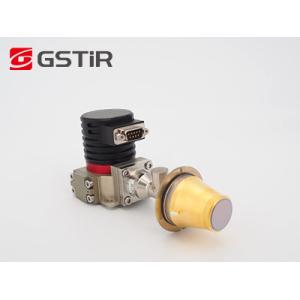

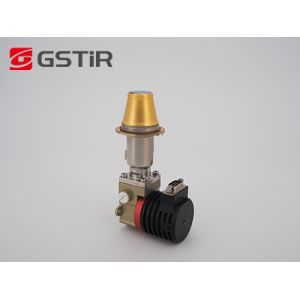

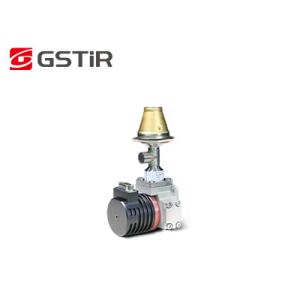

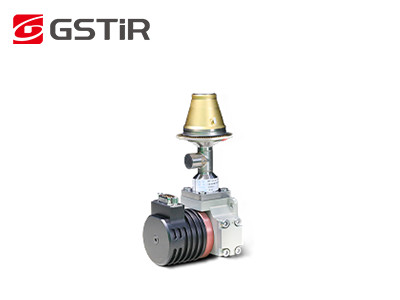

The C1212M MWIR MCT FPA detector has high resolution, high
performance and high reliability. It offers four times as many
pixels in the same active image area as conventional 640x512
products. Its reduced 12µm pixel size offers better spatial
resolution and matches shorter optical lens focus to achieve the
same range mission. C1212M is an ideal choice for applications that
require superior long range performance and image details
recognition.
Main Features
Outstanding Performance
• 1280×1024 high definition for wider FOV and longer distance
• 12μm pixel size for better spatial resolution
Sharp & Clear Image
• High sensitivity, typical NETD as low as 18mK
• Good uniformity, effective pixel rate＞99.5%
Design for Specific Applications
• F number can be customized
• Guarantee continuous supply
Product Specifications
| Model | C1212M MW |
| Material | MCT |
| Resolution | 1280x1024 |
| Pixel Pitch | 12μm |
| Spectral Range | 3.7μm～4.8μm MW |
| Working Mode | Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming |
| Charge Capacity | 6.75Me-/4.8Me-(ITR)
5.25Me-/3.3Me-(IWR) |
| Dynamic Range | ITR Mode≥80dB
IWR Mode≥76dB |
| Number of Output | 4 or 8; Up to 20Mpixel/s per Output |
| NETD | ≤20mK (F2/F4) |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Cryocooler Type | RS058F |
| Steady Power Consumption | ≤7W |
| Max Power Consumption | ≤17W |
| Power Supply | 24V DC |
| Cooling Time | ≤6min |
| Weight | ≤600g |
| Dimension (mm) | 149x58.5x71 |
| Working Temperature | -45°C ~ +71°C |
Industrial Applications
The C1212M MWIR cryogenically cooled infrared detector is widely
used many areas such as Remote Monitoring System, Flight Vision
Enhancement System, Multi-sensor Payload etc.
Our Advantages
FAQs
1. What is infrared radiation?
When talking about infrared thermal imaging, the first thing to
think about is infrared radiation (IR). The wavelength of infrared
radiation energy starts at about 700nm and extends to about 1mm.
All objects emit a certain amount of heat in the form of infrared
radiation, which is invisible to us, because in the entire
electromagnetic spectrum, the naked eye can only see "visible
light".
2. How does infrared thermal imager work?
The core component of the infrared equipment is the infrared
thermal detector, which can sensitively detect the tiny temperature
difference of the surrounding objects. Then, it collects this
radiation information from the object and outputs the temperature
information for imaging, which is based on the temperature
difference information. The hotter the object, the more infrared
radiation it produces. If the intensity is too high, you can feel
it like heat.
