1280x1024 12μM Megapixels Cooled FPA Detector High Sensitivity
Product Description

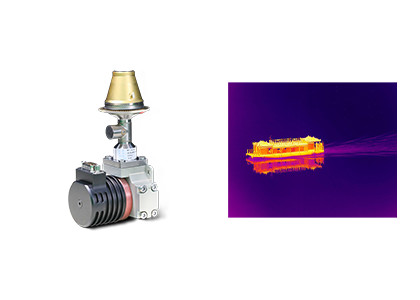

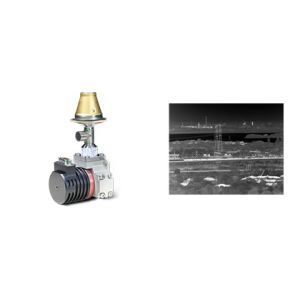

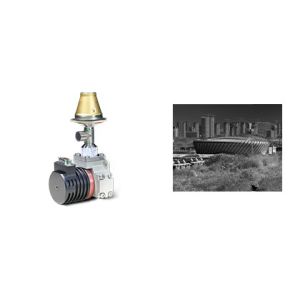

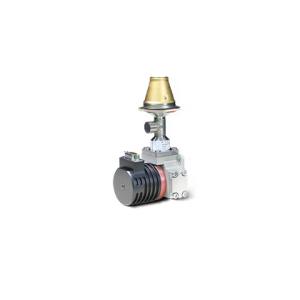

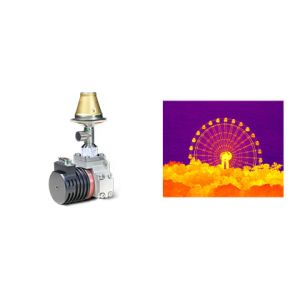

The C1212M MWIR MCT FPA detector has high resolution, high
performance and high reliability. It offers four times as many
pixels in the same active image area as conventional 640x512
products. Its reduced 12µm pixel size offers better spatial
resolution and matches shorter optical lens focus to achieve the
same range mission. C1212M is an ideal choice for applications that
require superior long range performance and image details
recognition.
Main Features
Outstanding Performance
• 1280×1024 high definition for wider FOV and longer distance
• 12μm pixel size for better spatial resolution
Sharp & Clear Image
• High sensitivity, typical NETD as low as 18mK
• Good uniformity, effective pixel rate＞99.5%
Design for Specific Applications
• F number can be customized
• Guarantee continuous supply
Product Specifications
| Model | C1212M MW |
| Material | MCT |
| Resolution | 1280x1024 |
| Pixel Pitch | 12μm |
| Spectral Range | 3.7μm～4.8μm MW |
| Working Mode | Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming |
| Charge Capacity | 6.75Me-/4.8Me-(ITR)
5.25Me-/3.3Me-(IWR) |
| Dynamic Range | ITR Mode≥80dB
IWR Mode≥76dB |
| Number of Output | 4 or 8; Up to 20Mpixel/s per Output |
| NETD | ≤20mK (F2/F4) |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Cryocooler Type | RS058F |
| Steady Power Consumption | ≤7W |
| Max Power Consumption | ≤17W |
| Power Supply | 24V DC |
| Cooling Time | ≤6min |
| Weight | ≤600g |
| Dimension (mm) | 149x58.5x71 |
| Working Temperature | -45°C ~ +71°C |
Industrial Applications
The C1212M MWIR cryogenically cooled infrared detector is widely
used many areas such as Remote Monitoring System, Flight Vision
Enhancement System, Multi-sensor Payload etc.
Our Advantages
FAQs
1. What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that
thermal images can be taken on long-term missions. In many high-end
applications, the sensors that capture images require extremely low
temperatures.
2. What are the main factors to measure the quality of Cryocooler?
Long battery life and reliable operation are main factors to
measure the quality of a cryocooler. GSTiR cryocooler has a wide
operating temperature range and excellent reliability. Its MTTF
(Mean Time to Failures) has reached to 10,000 hours, which meets
24*7 boot operation requirements.
3. What is MTTF?
MTTF (Mean Time to Failure) measures a part’s reliability. It shows
you how long on average a part lasts before it breaks and you have
to replace it. On a basic level, it tells you about the quality of
the parts you’re buying. The longer they last, the more value
you’re getting from them.
