Megapixel GAVIN1212 Cooled Camera Core
Long Range Detection 1280x1024 / 12μm MWIR MCT Cooled Camera Module
with 37.5~750mm Zoom Lens
Product Description

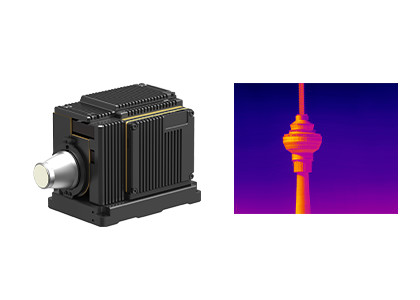

GAVIN1212 cooled infrared module is family member of Global Sensor
Technology’s GAVIN series thermal imaging modules. It comes with a
1280x1024 / 12µm high resolution MCT MWIR IR detector with RS058F
cryocooler, hardware electronics and various image processing
algorithms are also embedded already to present sharp and clear
thermal images.
With large array 1280x1024 resolution it can realize wider field of
view and provide more image details. The reduced 12µm pixel size
offer better spatial resolution and match shorter optical lens
focus to achieve the same range mission. It is ideal choice for the
EO-IR systems integrator to design their payload for air-borne or
ship-borne applications.
Main Features
- Meet the Needs of Long Range Detection
- High Sensitivity, NETD≤20mK
- Wide Field of View, Resolution up to 1280x1024
- Easy Integration into the System
- DVP/Cameralink Interface, RAW/YUV Image Output
- A Variety of Continuous Optical Zoom Lenses are Available
Product Specifications
| Model | GAVIN1212 |
| IR Detector Performance |
| Resolution | 1280x1024 |
| Pixel Pitch | 12μm |
| Cryocooler | RS058F |
| Spectral Range | 3.7μm～4.8μm MW |
| Cooling Time(20°C) | ≤8min |
| NETD (20°C) | ≤20mK |
| Image Processing |
| Frame Rate | 50Hz/100Hz |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | ×1/×2/×4 |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | NUC/AGC/IDE |
| Electrical Specification |
| Standard External Interface | J30JZ 25pin; HDMI Special Output Interface |
| Analog Video | / |
| Digital Video | HDMI Output: YUV
Cameralink Output: 16bit RAW/YUV |
| External Sync | Frame External Sync: RS422 Level |
| Communication | RS422, 115200bps |
| Power Supply | 24V±1V |
| Stable Power Consumption | 16W |
| Dimension (mm) | 165x86x107 |
| Weight | ≤1600g |
| Operation Temperature | -40°C ~ +60°C |
| Vibration Magnitude | Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each |
| Optical Lens |
| Optional Lens | Continuous Zoom: 37.5~750mm/F4
Fixed Zoom: 19mm/F2; 40mm/F2; 240mm/F2 |
Industrial Applications
The GAVIN1212 thermal infrared camera module is widely used many
areas such as Remote Monitoring System, Flight Vision Enhancement
System, Multi-sensor Payload etc.
IR Detection Solutions
FAQs
1. What is MCT/HgCdTe detector?
MCT, also called HgCdTe, refers to Mercury-Cadmium-Tellurid which
is a chemical compound of cadmium telluride (CdTe) and mercury
telluride (HgTe) and a common material in photodetectors. MCT/
HgCdTe detector is a photoconductive detector that operates at a
cryogenic environment and can detect infrared radiation. It is more
sensitive than the thermal sensors.
2. What is T2SL detector?
T2SL refers to Type-II Superlattice, which is an artificial
material with alternating growth periodic heterojunction at
nanometer size. It has high uniformity and superior optical
property, such as large electron effective mass,large absorption
coefficient and high quantum efficiency. Compared with MCT infrared
detector, the T2SL infrared detector has good material uniformity,
low cost, and similar performance to MCT infrared detector in
medium and long wave band, but has great advantages in very long
wave band.
