About C615M Cooled Infrared Detector

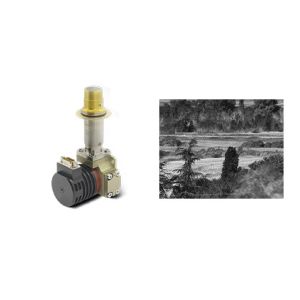

High Sensitivity 640x512 / 15μm MWIR Cooled Infrared Detector with
RS058 Integral Stirling Cooler
Product Description
C615M MWIR is one of the HgCdTe/MCT cooled infrared detectors
developed by Global Sensor Technology (GST). It is with the most
popular 640x512@15μm spec for almost all possible applications like
long range surveillance system, handheld thermal imagers, gas
leakage detection cameras etc.
The C615M RS058 is interchangeable with most mainstream Scorpio
like products when configured with RS058 integrated stirling
cooler. The dewar design, the cooler dimension, and the
mechanical/electrical interface are almost the same so that the
camera integrators only need to take out their old defective
counterpart and connect our interchangeable C615M RS058 easily for
further internal configuration.
Main Features
- Resolution: 640x512
- Pixel Pitch: 15μm
- High Sensitivity
- Compact Design
- Lightweight
- Low Power Consumption
Product Specifications
| Model | C615M MW |
| Material | MCT |
| Resolution | 640x512 |
| Pixel Pitch | 15μm |
| Spectral Range | 3.7μm～4.8μm MW |
| Working Mode | Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming |
| Charge Capacity | 9.1Me-/6.5Me-(ITR)
7.8Me-/5.2Me-(IWR) |
| Dynamic Range | ≥75dB |
| Number of Output | 4; Up to 10Mpixel/s per Output |
| NETD | F2: ≤17mK
F4: ≤18mK |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Cryocooler Type | RS058/RS046 |
| Steady Power Consumption | ≤6W@RS058
≤5W@RS046 |
| Max Power Consumption | ≤12W @ RS058
≤11W @ RS046 |
| Power Supply | RS058: 24V DC
RS046: 32V DC |
| Cooling Time | ≤6min @ RS058
≤5min30s @ RS046 |
| Weight | ≤600g @ RS058
≤350g @ RS046 |
| Dimension (mm) | RS046: 122x46.3x82
RS058: 147x58.5x71 |
| Working Temperature | -45°C ~ +71°C |
Industrial Applications
The C615M MWIR cryogenically cooled infrared detector is widely
used many areas such as Remote Monitoring System, Flight Vision
Enhancement System, Multi-sensor Payload etc.
About Global Sensor Technology
FAQs
1.What is infrared thermal imaging?
Infrared thermal imaging is a method of using infrared radiation
and thermal energy to gather information about objects, in order to
formulate images of them, or get temperature information of the
objects, even in low visibility environments.
2.How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection
and identification of infrared technology. It focuses the infrared
radiation of the scene on the focal plane array infrared detector
through the infrared optical system that can pass through infrared
radiation. The thermal detector converts the radiation signal of
different intensity into the corresponding electrical signal, and
then through amplification and video processing, forms the infrared
image that can be observed by the naked eyes.
