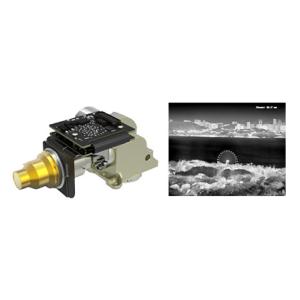

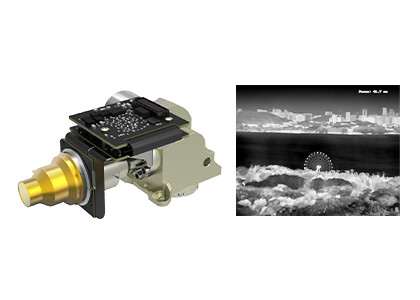

EYAS615B Infrared Camera Core by GST Infrared
Cooled AD Thermal Module with 640x512 / 15μm MCT MWIR Cooled
Infrared Detector, RS046 Cryocooler
Product Description
EYAS series cooled AD modules have the pre-amplifier function to
convert the analog signal from cooled IR detectors into a digital
video stream output. It is available with different resolution
formats and different wave bands. EYAS615B is a member of EYAS
family with 640x512@15μm MWIR infrared detector and RS046
cryocooler integrated.
With EYAS series cooled AD module, it is easy for OEM customers to
carry out fast acceptance test on GST detectors, start rapid
secondary development and shorten their development period of
modules and complete products based on cooled infrared detectors.
Global Sensor Technology is an infrared detector supplier and OEM
infrared thermal core manufacturer which provides customers with
various mature and effective thermal imaging solutions.
Main Features
- Easy to Develop & Integrate
- Cameralink Interface Output 16bit Raw Data, Serial Port Control
- Integrated Structure, Dimensions are Consistent with Detector
- 5V Single-supply
- Capable of Capturing High Speed Moving Target
Product Specifications
| Model | EYAS615B |
| IR Detector Performance |
| Resolution | 640x512 |
| Pixel Pitch | 15μm |
| Cryocooler | RS046 |
| Spectral Range | 3.7μm～4.8μm MW |
| Cooling Time (25°C) | ≤5.5min |
| Optimal NETD (20°C) | ≤18mK |
| Working Mode |
| Frame Rate | 1~50Hz Adjustable |
| Working Mode | Snapshot; ITR/IWR Integration Mode; Windows Mode; Anti-blooming |
| Electrical Specification |
| Standard External Interface | QSH 60pin |
| Digital Video | Cameralink: Output 16bit Raw Data |
| External Sync | CC1: INT/Frame External Sync; CC2: MC External Sync |
| Communication | Cameralink Serial Port: TFG+/-, TC+/-; 9600bps |
| Power Supply | 1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 12V |
| Stable Power Consumption | 8W |
| Dimension (mm) | 122×88×59 |
| Weight | ≤400g |
| Working Temperature | -40°C ~ +60°C |
| Vibration Magnitude | Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each |
Industrial Applications
The EYAS615B thermal imaging module is widely used many areas such
as Remote Monitoring System, Flight Vision Enhancement System,
Multi-sensor Payload etc.
Our Advantages
FAQs
1. What is infrared thermography?
Thermography is a new and effective technology of non-invasive
diagnostic method based on object surface temperature detection.
The infrared (IR) radiation emitted from an object is recorded and
visualized in the form of a temperature distribution map.
2. What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections,
determine structural defects, electrical faults, mechanical faults,
physiological changes in people & animals and much more.
3. What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to
response without damage, which results in saving costs, increasing
work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the
hidden problems in human body, 100% safe without radiation and
pain, which is an ideal tool for early health screening.
